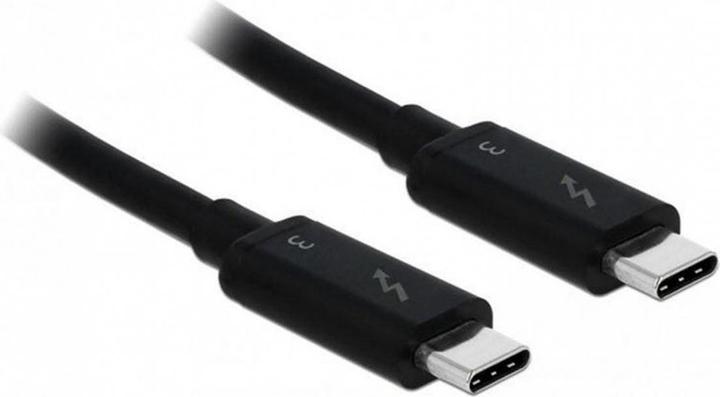

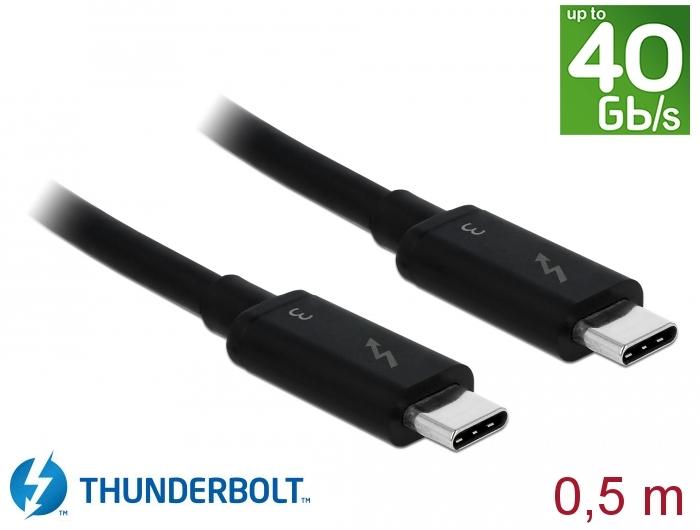

This Thunderbolt 3 cable from Delock is universally applicable and combines all advantages of the Thunderbolt 3 interface. It allows the connection of various devices, such as external cases, monitors, card readers and docking stations, via a Thunderbolt 3 port of a PC or notebook. The cable enables data transfer rates of up to 40 Gb/s and supports USB as well as DisplayPort, PCI Express and Ethernet data transfer. For example, it is possible to connect one 5K or two 4K DisplayPort monitors, as well as USB 3.1 Gen 2 devices. Also the power supply of connected devices with a power up to 100 W is possible.

Specification

• Connections:

1 x Thunderbolt 3 USB Type-C 24 Pin Connector >
1 x Thunderbolt 3 USB Type-C 24 Pin Connector

• Chipset: Cypress E-Marker
• Conductor cross section:

32 + 34 AWG Data cable
24 + 34 AWG Power line

• Cable diameter: approx. 4.4 mm
• Conductor: 8 x coaxial for SuperSpeed USB, 1 x twisted pair for USB 2.0
• Contacts with gold plating
• Triple shielded cable
• Data transfer rates:

Thunderbolt 3 up to 40 Gb/s
DisplayPort 1.2a up to 21.6 Gb/s
SuperSpeed USB up to 10 Gb/s
Thunderbolt networking up to 10 Gb/s (peer-to-peer)

• Monitor resolution up to:

1 x 5120 x 2880 30 bit @ 60 Hz,
1 x 4096 x 2160 30 bit @ 120 Hz or
2 x 4096 x 2160 30 bit @ 60 Hz
(depending on system and connected hardware)

• Supports data and video over a single cable
• Supports PCI Express 3.0 protocol (4 lanes)
• Supports DisplayPort 1.2a Protocol (8 Lanes, HBR2 and MST)
• Cascadable up to 6 Thunderbolt devices (Daisy Chain)
• Dual channel, bi-directional data transmission
• Power supply via USB Power Delivery up to 100 W (20 V / 5 A)
• Power supply for Thunderbolt 3 devices with bus power (max. 15 W)
