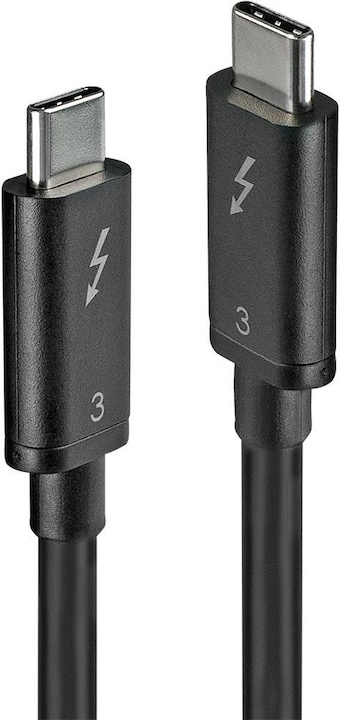

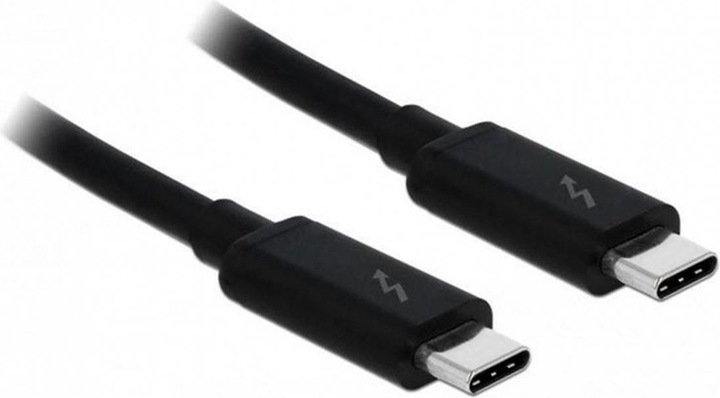

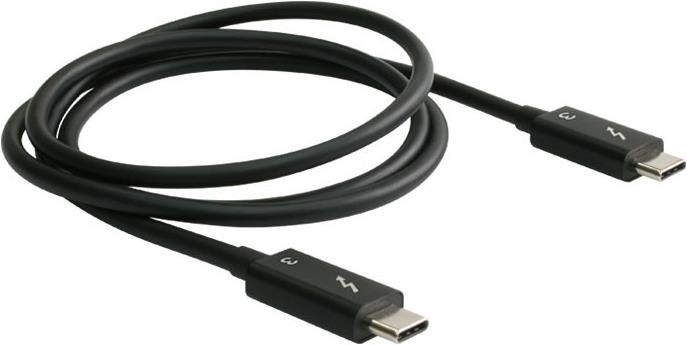

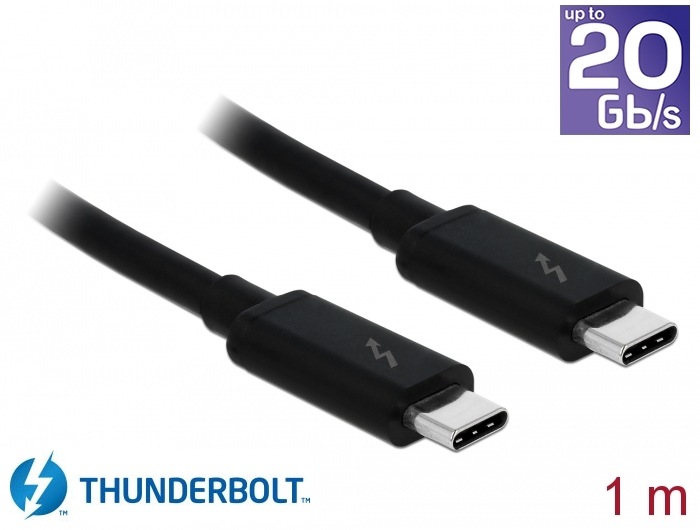

This Thunderbolt 3 cable from Delock is universally applicable and combines all the advantages of the Thunderbolt 3 interface. It allows the connection of various devices, such as external enclosures, monitors, card readers, and docking stations, through a Thunderbolt 3 port of a PC or laptop. The cable enables data transfer rates of up to 20 Gb/s and supports the transmission of USB, DisplayPort, PCI Express, and Ethernet data. For example, it allows the connection of a 5K or a 4K DisplayPort monitor, as well as USB 3.1 Gen 1 devices. It also supports powering connected devices with a power output of up to 100 W.

Note: The maximum achievable data transfer rate of 40 Gb/s with Thunderbolt 3 can only be realized with a 0.5 m long cable.

Specifications:
• Connectors: 1 x Thunderbolt 3 USB Type-C 24 Pin plug, 1 x Thunderbolt 3 USB Type-C 24 Pin plug
• Chipset: Cypress E-Marker
• Wire gauge: 32 + 34 AWG data line, 24 + 34 AWG power line
• Cable diameter: approx. 4.4 mm
• Conductors: 8 x coaxial for SuperSpeed USB, 1 x twisted pair for USB 2.0
• Contacts with gold plating
• Triple-shielded cable
• Data transfer rates: Thunderbolt 3 up to 20 Gb/s, DisplayPort 1.2a up to 21.6 Gb/s, SuperSpeed USB up to 5 Gb/s, Thunderbolt Networking up to 10 Gb/s (Peer-To-Peer)
• Monitor resolution up to: 1 x 5120 x 2880 30 Bit @ 60 Hz or 1 x 4096 x 2160 30 Bit @ 60 Hz (depending on the system and connected hardware)
• Supports data and video over a single cable
• Supports PCI Express 3.0 protocol (4 lanes)
• Supports DisplayPort 1.2a protocol (8 lanes, HBR2, and MST)
• Cascadable up to 6 Thunderbolt devices (Daisy Chain)
• Dual channel, bi-directional data transmission
• Power supply via USB Power Delivery up to 100 W (20 V / 5 A)
• Power supply for Thunderbolt 3 devices with bus power (max. 15 W).
